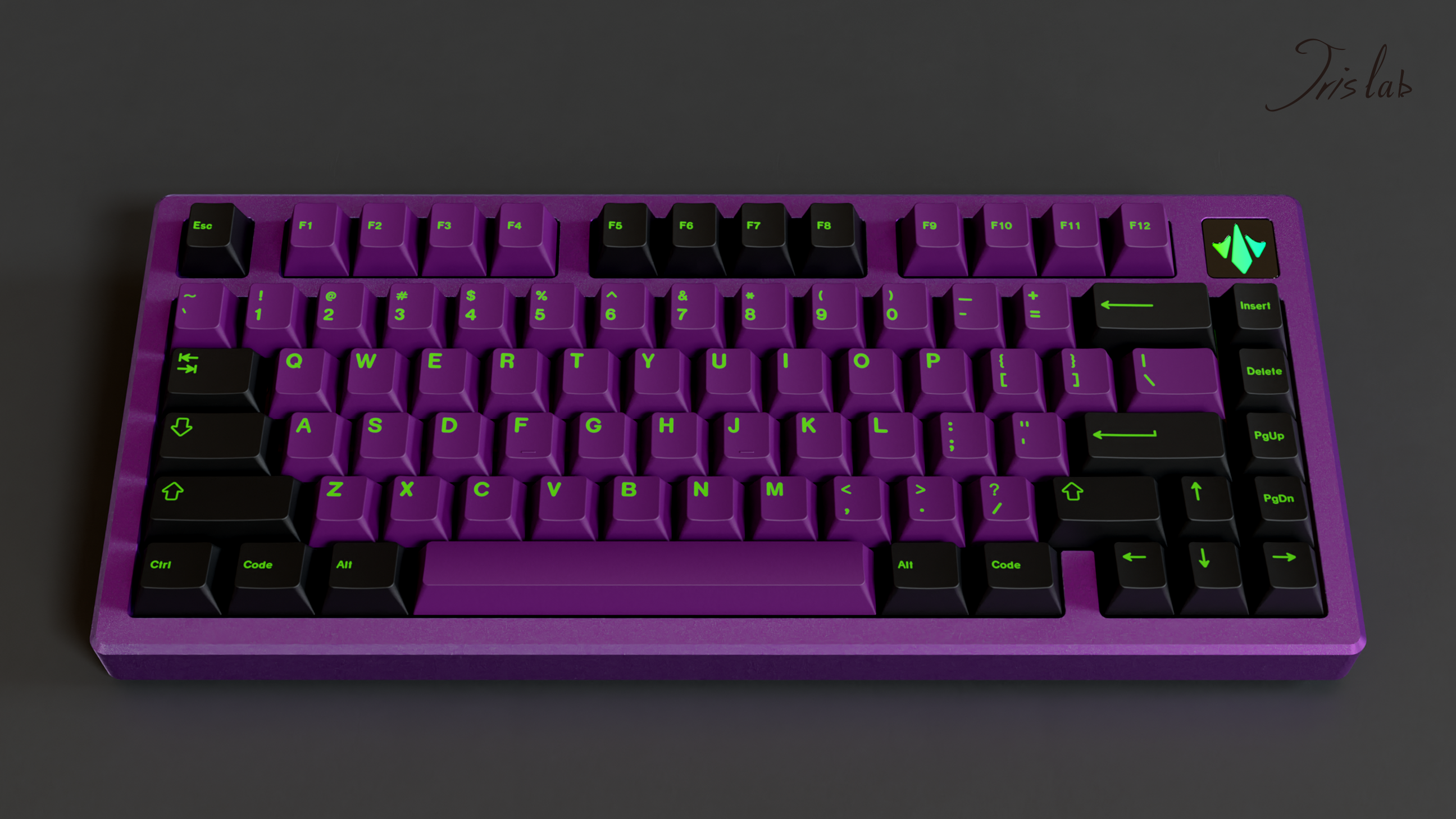

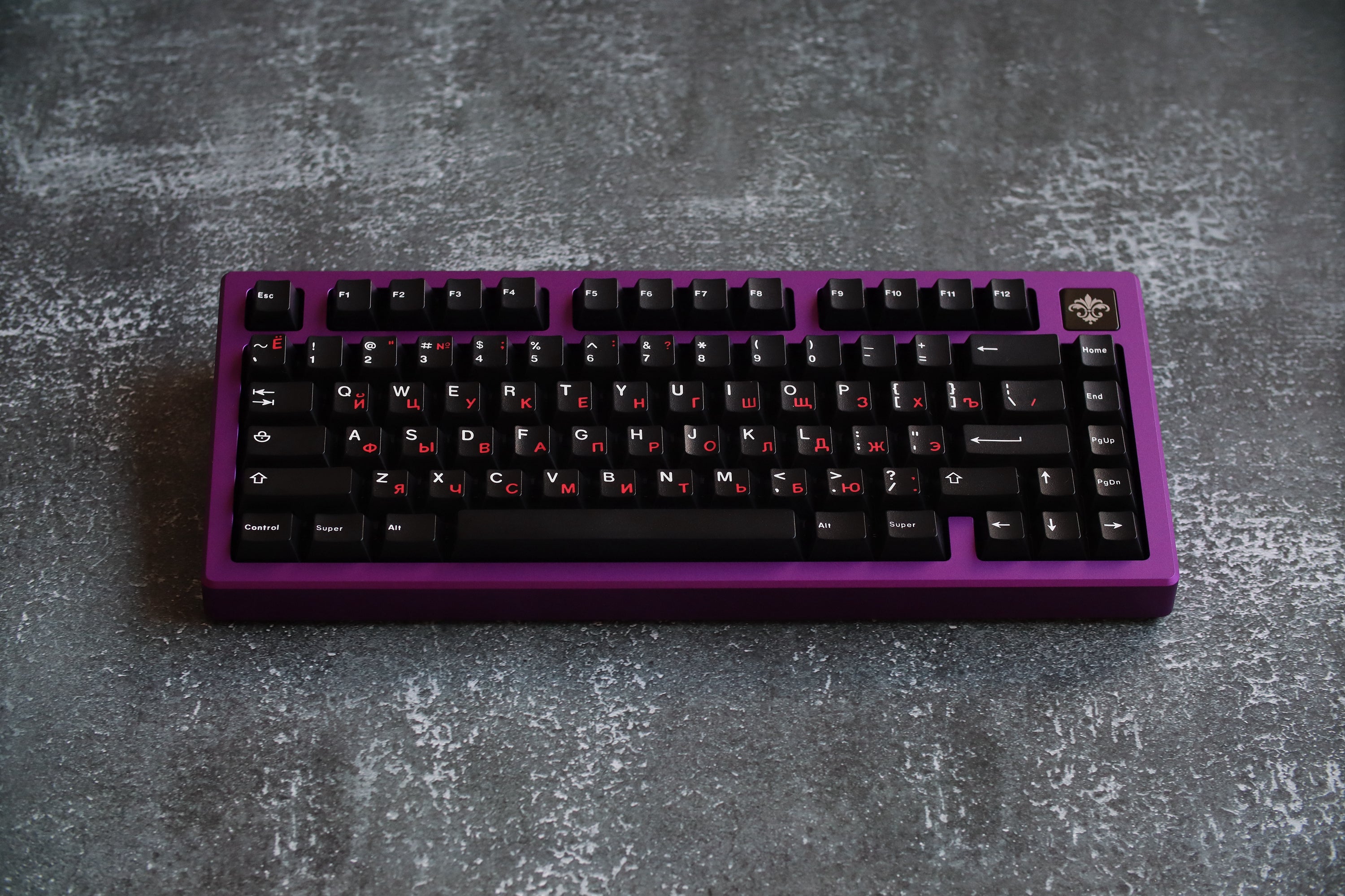

[Group-Buy] Jris75 PCB Gasket Mount Keyboard Kit - Purple&Black(Alu Weight)

$155.00

Weight
PCB
Plate
Description

Available Optional Extras
Please add to cart with your keyboard

Accessories

Solid Aluminum Wrist Rest

Brass PVD Rotary Knob/Badge/LED Light Sign



The GB units will make some improvements compared to the prototype:

  • Add the alignment pins where the gasket silicone column is installed, so the internal will not move up or down after assembly.
  • Changed the per-key flex cut plate to a regular flex cut to avoid the PCB may hits the bottom case and improving the typing sound.
  • Include a Customized Masking Tape to mod the flex-cut PCB for a better typing sound.
  • Adjusting the hotswap PCB socket direction of the multi-layout Hotswap PCB to be compatible with the 6.25U and 7u.
  • The two bottom-case foams will change one of them as no cut foam.
  • The GB unit of the Per key flex cut PCB will adopt the red line instead of the gold line.

Specifications:

  • Typing angle:7°
  • Front height:21 mm
  • Material:Full CNC 6063 aluminum
  • Dimension:325*142*39mm
  • Structure:PCB Gasket
  • QMK/VIA Supported(wired)
  • Support PCB stabilizers

What you can customize for JRIS75?
Case Colors Options:
PVD Weight:
E-White/Milky-White/Pink/Lilac/Silver/Black/Orange&Black/Grey&Black/Wine
Red&Black/Blue&Black/Purple&Black
Alu Weight:
E-White/Milky-White/Pink/Lilac/Silver/Black/Orange&Black/Grey&Black/Wine Red&Black/Blue&Black/Purple&Black

Weight Options:
Anodized Alu Weight: Black/Silver/Gold
PVD Mirror Stainless steel Weight: Black/Silver/Gold/Chroma
Plate Options:
Flex Cut Plates: FR4/ALU/Brass(Brass Plate Add-ons Only)
The regular FR4 plate is upgrading to the black core martial at the same price.
Non-flex Cut Plates: PC/POM
Plateless Build Options:

We highly suggest building plateless with solder PCB, 5mm extra plate foam
and bottom case foam. The 5mm extra plate foam will bring a more soft typing
feel, and the typing sound will be cleaner. But without the 5mm plate foam, it
will also work fine, and the typing feel and sound are very different.

PCBs Options:
Flex Cut PCBs:
Multi layout Black core Hotswap&Solder PCB supports QMK/VIA

  • Wired QMK/VIA soldered PCB compatible with PCB stabs, split backspace, split left shift key, Step Capslocks, 7U spacebar



ANSI layout 5.2 Bluetooth Hotswap PCB supports LDN Software

  • Wired/Wireless BT hotswap PCB compatible with PCB stabs, Step Capslocks


BT PCB is cooperating with Li Dana. LDN’s PCB is famous in China because his PCBs are stable and qualified and user friendly. It has its drive and software, which can edit the key mapping. Please check the software driver interface here.

  • 8 devices can pair with at the same time, and it is easy to switch devices you want.
  • The power switch is on the PCB, easy to turn BT function on/ off.
  • The fastest response time is only 1.25ms
  • The polling rate for the BT PCB is 1ms/1000hz
  • The battery is 4400mAh, bigger battery compartment, more robust wireless mode range.

We highly recommend using a PC/ POM/FR4 plate for BT PCB because the Brass and ALU plate will have a little affection for connectivity.
Non-flex Cut PCB:
ANSI layout Black core Hotswap PCB with RGB Per Key, supports QMK/VIA

  • Wired QMK/VIA hotswap PCB compatible with PCB stabs, Stepped caps lock, split backspace


Per Key Flex Cut PCB( Add-ons only)
ANSI layout Black core Hotswap PCB with Per Key Flex Cut, supports QMK/VIA
The GB unit of the Per key flex cut PCB will adopt the red line instead of the gold line.

  • Wired QMK/VIA hotswap PCB compatible with PCB stabs, Stepped caps lock


What's in package?

  • 1x Full CNC Aluminum Case
  • 1x Brass internal weight
  • 2 x Weights: Anodized Alu Weight/ Stainless steel PVD Weight
  • 1 x PCB Hotswap/ Soldered/ Bluetooth
  • 1x Plate (PC/ FR4/ Alu/POM)
  • 2x Poron Case Foam
  • 1x Poron Plate Foam
  • 1x IXPE Foam
  • 26x Gasket Silicone column
  • 1xType-C Daughterboard
  • 1x JST Cable
  • 1 Set Anti-Shock Silicone Pad
  • 1 Set of Footpad

Gift(will not send make-up or replacements)

  • 1x Customized Carrying Case
  • 1x Customized Type-C Cable
  • 1x Silicone pad of battery compartment (Only for the wired version )
  • 2 x 2200mAh Battery(Only for the Bluetooth version)
  • 1 X Customized PVD Artisan keycaps
  • 1x Aluminium Alloy Screwdriver with 2 replaceable bits
  • 1 x 2 in 1 Switch puller and Keycap puller
  • 1 x Customized Masking Tape(Fit the flex cuts in the PCB perfectly)
Group Buy or Pre-order Disclaimer

1. The renders only provide an idea of what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as a reference before purchasing.

2. Estimates of time are our best guesses, they're not 100% guaranteed. Delays and setbacks may occur.

3. DO NOT PURCHASE if you disagree with the terms and conditions.

4. GB or Pre-order items will not have order combinations. Please place only one order.

5. There will be a 4.4% fee on order cancellations and refunds after placing an order.

6. Your payment method will be charged once you place the order. There are no change orders, refunds, or cancellations after the group buy or pre-order ends.

7. Please complete the inspection below within three days after receiving the package. If you find any issues, kindly take some photos to show and contact our customer service team for further assistance.
- Exterior Packaging Inspection: Please carefully examine the external packaging of the parcel for any signs of damage, such as noticeable tears or rips.
- Item Quantity Verification: Kindly verify that the quantity of items within the package matches the details on the order.
- Product Exterior Check: Please thoroughly inspect the products for defects and damages.

In Stock Disclaimer

Cancellation

Order cancellation before the product is shipped or produced is acceptable. We cannot cancel the order if the product is already shipped out.

Noted: Group Buy item, please refer to the relevant policies of the Group Buy policy.

Processing Fees

Any refund is subject to a 4.4% processing fee to cover various merchant fees that we do not get back.

Returns (if applicable)

We accept the return of products. Customers have the right to apply for a return within 14 days after product delivery. And the return shipping fee should be borne by customers.

The order must be unused, and in the same condition, you received. It must also be in the original packaging.

To complete your return, we require a receipt or proof of purchase. Please ask our customer service to ensure you send the package to the correct address.

Important Notice

1. The renders only provide an idea of what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as a reference before purchasing.

2. Please complete the inspection below within three days after receiving the package. If you find any issues, kindly take some photos to show and contact our customer service team for further assistance.
- Exterior Packaging Inspection: Please carefully examine the external packaging of the parcel for any signs of damage, such as noticeable tears or rips.
- Item Quantity Verification: Kindly verify that the quantity of items within the package matches the details on the order.
- Product Exterior Check: Please thoroughly inspect the products for defects and damages.

Quality Disclaimer

1. Each kit comes with fragile labels. Please check the appearance thoroughly before building. If you see any noticeable flaws/scratches on the external surfaces, please take a photo and contact us immediately. We’ll not be responsible for any flaws/scratches found after building.

2. Due to the nature of the PVD coat, there may be minor, unavoidable dust points/micro scratches on the mirror finish of the PVD weight. The small dust points/micro scratches are only visible at just the right angle of the lighting.

3. Chroma andGradient PVD Mirror Stainless steel weight has random nature. Each weight may have some slight differences.

4. CNC marks and imperfections inside the keyboard case or dents on the subject are not visible when the keyboard is fully built. These are normal and within our quality acceptance.

5. On all other surfaces and edges, blemishes under 2mm are approved.

6. The bottom of the Solid Aluminum Wrist Rest is defined as a B-level surface because the bottom side is the hanger side during the anodized process. The QC standard for B-level cover: blemishes under 1cm are approved on the surfaces and edges. Three or fewer fine trachoma, dust spots, etc., are within our quality acceptance (The diameter is under0.5mm). Color uniformity is a normal phenomenon around the process hole, but it is guaranteed that it will not be visible after installation.

7. Other than the case itself, all parts with cosmetic imperfections will not be replaced unless the function is damaged for usage.

8. Warranty only applicable for the first owner who purchased on our website or at our collaborative shops, with proof of purchase such as order number and confirmation.

9. Our warranty covers the PCB for one year of use or if dead on arrival without any modification.

10. Broken parts due to any human error will void your warranty. Including below list but not only

  • - Mill-maxing PCB
  • - Tape modding PCB
  • - Hotswap Sockets that are pushed out of the PCB solder pads
  • - Did not follow the steps to flash PCB and caused no function

 11. Gifts will not ship out replacements or issue a partial refund.

Shipping

We aim to offer you the best shipping options, no matter where you live. We deliver to hundreds of customers worldwide every day and strive to provide you with services of the highest level.

For the Group Buy product: Please pay attention to the project update.

For the in-stock item: The estimated order delivery time is be divided into two parts:
Processing time: 2-5 Days
Shipping time: 7~30 Days

The shipping estimate is only the time of travel, which is subject to delay due to covid.

Shipping methods: Epacket/DHL/UPS/FedEx/USPS/Other economic shipping Shipping fee: Depends on weight and shipping method specified and selected by customers.

Duties and import taxes:All costs associated with international shipping such as customs duties and import taxes are the responsibility of the customer.

Shipping address: we do not accept any third-party logistics warehouse, otherwise the resulting return of goods, detention of goods, destruction and other related costs will be paid by the customer.

Once departed, couriers will be liable for the delivery. In case of a package is lost after delivery, Mykeyclub is not responsible. However, we will assist during the claiming process in case of failed delivery.

If you have any questions about your order delivery, please email service@mykeyclub.com

Jris75

A more creative, functional, and durable one - the JRIS75. We use a 75% layout to add a quick disassembly, triple adjustment of plate hardness, and modular components to support the Switch, Badge, Rotary knob, and LED light sign at will replacement.

Design

Simple And Clean Design

---

Continuing the dual-weight design of JRIS65 but Blank Back Weight.

Design

Swap switch, Rotary knob, Badge, and LED light sign assembly.

---

Give you define more possibilities and more individual and diverse appearance options to meet the cool trend needs.

Design

Full CNC Aluminum Case, Internal Brass Weight

---

Enhancing the overall stability and sound performance.

Design

4400mAh Bigger Battery Compartment

---

More robust wireless mode range.

New Gasket Mounting System
Rating of 1 means .
Rating of 4 means .
The rating of this product for "" is 3.

Sofest

3 installation ways for different hardness needs bring you three different typing experiences.

New Gasket Mounting System
Rating of 1 means .
Rating of 4 means .
The rating of this product for "" is 2.

Middle

3 installation ways for different hardness needs bring you three different typing experiences.

New Gasket Mounting System
Rating of 1 means .
Rating of 4 means .
The rating of this product for "" is 1.

Hardest

3 installation ways for different hardness needs bring you three different typing experiences.

New Gasket Mounting System
Rating of 1 means .
Rating of 4 means .
The rating of this product for "" is 3.

Sofest

3 installation ways for different hardness needs bring you three different typing experiences.

Rating of 1 means .
Rating of 4 means .
The rating of this product for "" is 2.

Middle

3 installation ways for different hardness needs bring you three different typing experiences.

Rating of 1 means .
Rating of 4 means .
The rating of this product for "" is 1.

Hardest

3 installation ways for different hardness needs bring you three different typing experiences.

Quick Disassembly

Quick Disassembly

To enhance your assembly experience, JRISLAB learns the quick-disassembly structure for the JRIS75. You can adjust the amount of compression on the snap screw to achieve different quick-release strength adjustments.
 In addition, we moved the battery wiring port from the PCB to the daughter board, and only one connection wire is retained between the PCB and the bottom shell. That makes the internal wires neater and simplifies the steps of disassembly and installation.

Replaceable Rotary Knob, Badge, and LED light sign

---JRIS75---

What can you customize for JRIS75?

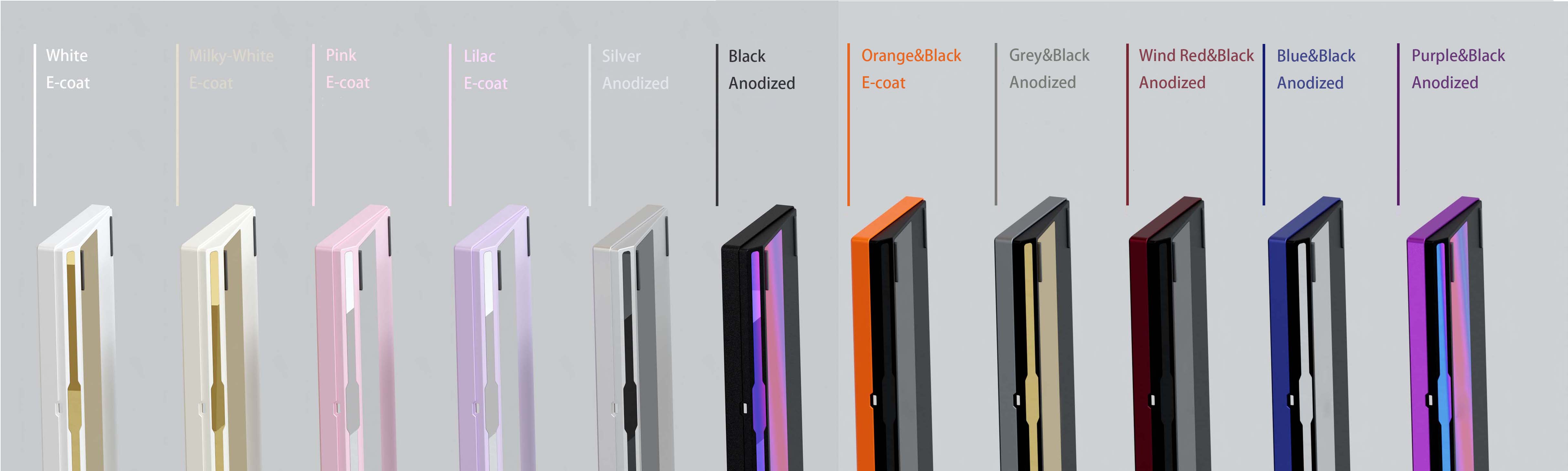

CASE COLORS OPTIONS

5 E-coat Case: White/MilkyWhite/Pink/Lilac/Orange&Black

6 Anodized Case: Silver/Black/Grey&Black/WineRed&Black/Blue&Black/Purple&Black

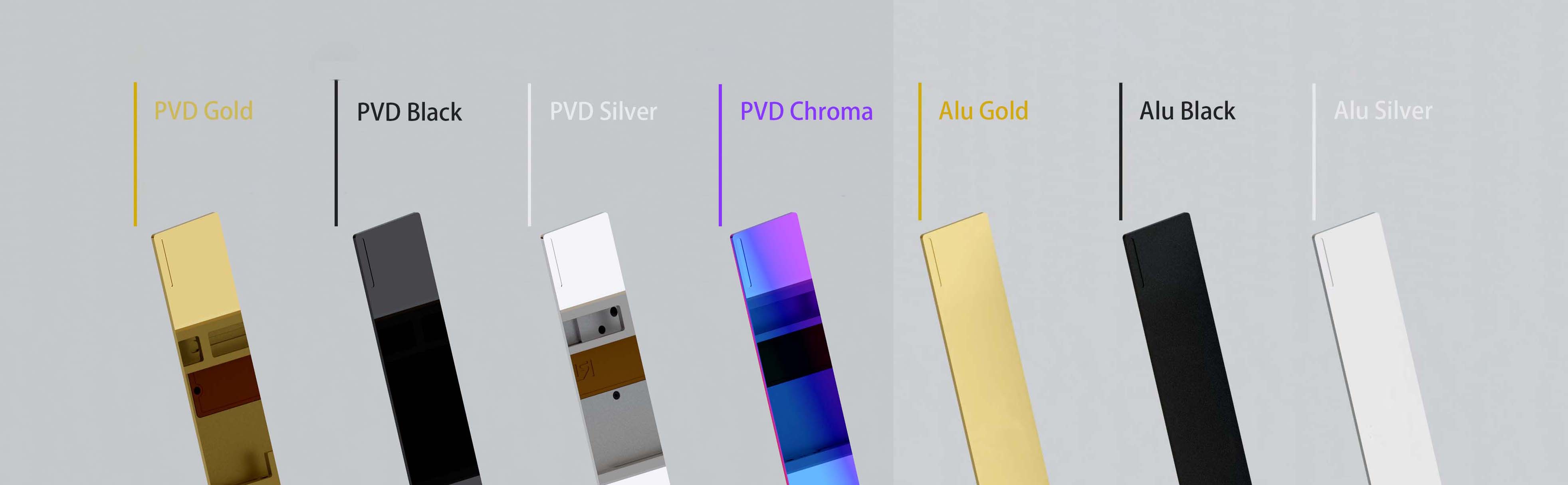

WEIGHT OPTIONS

3 Anodized Alu Weight: Black/Silver/Gold

4 PVD Mirror SS Weight: Black/Silver/Gold/Chroma

PCB OPTIONS

○ Flex Cut PCBs:Multi layout Black core Hotswap&Solder PCB, supports QMK/VIA.
Wired QMK/VIA soldered PCB compatible with PCB stabs, split backspace, split left shift key, Step Capslocks, 7U spacebar

○ Non-flex Cut PCB:ANSI layout Black core Hotswap PCB with RGB Per Key,supports QMK/VIA.
Wired QMK/VIA hotswap PCB compatible with PCB stabs, Stepped caps lock, split backspace

○ Flex Cut PCBs:ANSI layout 5.2 Bluetooth Hotswap PCB,supports LDN Software.
Wired/Wireless BT hotswap PCB compatible with PCB stabs, Step Capslocks

○ Per Key Flex Cut PCB (add-ons only): ANSI layout Black Core Hotswap PCB with per key flex cut, supports QMK/VIA.
Wired QMK/VIA Hotswap PCB compatible with PCB stabs, stepped caps lock.

BT PCB is cooperating with Li Dana. LDN’s PCB is famous in China because his PCBs are stable and qualified and use friendly. It has its drive and software, which can edit the key mapping and layers. Please check the software driver interface here.
1. 8 devices can pair with at the same time, and it is easy to switch devices you want.
2. The power switch is on the PCB, easy to turn BT function on/ off.
3. The fastest response time is only 1.25ms.
4. The polling rate for the BT PCB is 1ms/1000hz.
5. The battery is 4400mAh, bigger battery compartment, more robust wireless mode range.

Note: We highly recommend using a PC/ POM/FR4 plate for BT PCB because the Brass and ALU plate will have a little affection for connectivity.

PLATE OPTIONS

○ Flex Cut Plates: FR4, ALU, Brass (Brass Plate Add-on only)
The regular FR4 plate is upgrading to the black core martial at the same price.
○ Non-flex Cut Plates: PC, POM

Plateless Build Options

We highly suggest building plateless with solder PCB, 5mm extra plate foamand bottom case foam.
The 5mm extra plate foam will bring a more soft typingfeel, and the typing sound will be cleaner. But without the 5mm plate foam, itwill also work fine, and the typing feel and sound are very different.

---JRIS75---

Specifications

Typing angle: 7°
 Front height: 21 mm
 Material: Full CNC 6063 aluminum
 Dimension: 325*142*39mm
Structure: PCB Gasket
Both PCB and plate adopt flex cut design
 QMK/VIA Supported(wired)
 Support PCB stabilizers

---JRIS75---

What's in package?

Standard
  • 1x Full CNC Aluminum Case
  • 1x Brass internal weight
  • 2x Weights: Anodized Alu Weight/ Stainless steel PVD Weight
  • 1x PCB Hotswap/ Soldered/ Bluetooth
  • 1x Plate (PC/ FR4/ Alu/POM)
  • 2x Poron Case Foam
  • 1x Poron Plate Foam
  • 1x IXPE Foam
  • 26x Gasket Silicone column
  • 1xType-C Daughterboard
  • 1x JST Cable
  • 1 Set Anti-Shock Silicone Pad
  • 1 Set of Footpad
Gift (will not send make-up or replacements)
  • 1x Customized Carrying Case
  • 1x Customized Type-C Cable
  • 1x Silicone pad of battery compartment (Only for the wired version )
  • 2x 2200mAh Battery(Only for the Bluetooth version)
  • 1x Customized PVD Artisan keycaps
  • 1x Aluminium Alloy Screwdriver with 2 replaceable bits
  • 1x 2 in 1 Switch puller and Keycap puller
  • 1x Customized Masking Tape(Fit the flex cuts in the PCB perfectly.)
Available Optional Extras
  • Brass PVD Rotary Knob: Snowflake/ Four-leaf Clover/ Flower/Blank
  • Brass PVD Badge: Iris/ Leaf / Butterfly/Blank
  • Brass PVD LED Light Sign
  • Solid Aluminum Wrist Rest
  • PCB Kit (Hotswap/ Hotswap with RGB/ Soldered/Bluetooth/Per Key Flex Cut PCB)
  • Plate (PC/ FR4/ Alu/POM/Brass)Weight
  • PVD Protectors kit
---JRIS75---

Review Vidoes

Play

More Review List

:3ildcatPink - with PVD Chroma + Wrist Rest

alexotos- Purple&Black with PVD Silver

nearLucid - Silver with PVD Chroma

Yo_keebs - Lilac with PVD Chroma

whnkeys - Custom Tastaturen - Silver with PVD Glod

bored bear - Pink with PVD Silver

prototypist - Purple&Black with PVD Chroma

kittykatmechkey - Purple&Black with PVD Silver

Rx003 - Wine Red&Black with PVD Silver

---JRIS75---

Vendor List

US: KeebsForAll

Canada: Deskhero

EU: Candykeys

UK: Prototypist

South American: LatamKeys

Oceania: SwitchKeys

South Korea: Monstargear

Japan: Basekeys

Singapore: Hex Keyboards

Indonesia: KeebsMark

Thailand: NTCH Keys

Malaysia: Rebult Keyboards

Vietnam: MOKB STORE

Philippines:Zion Studios

Bangladesh: KeyB

Taiwan: 鍵盤好貴

Rest of the world: Mykeyclub
