Jris80 GROUP BUY
GB Time: November 28th to December 14th
JRIS80 INTRODUCTION
IRISLab aims to let customers experience better custom kits at a valuable price so that more members can enjoy the fun of custom keyboards.
And the most popular layout of customized keyboards is 65%, 75%, and 80%, so the third project is an 80% keyboard.
The JRIS adopted simple and beautiful design concepts, reflected in JRIS65 and JRIS75.
JRIS80 will be more different from previous products to show our progress and ideas while being beautiful and practical.
JRIS80 Information
Front Design
- WK and WKL are both available.
- The layout supports F13 Key + Tsangan Bottom Row, which looks more symmetrical, harmonious, beautiful, and compact. In the position of the Pause key, it can be used as a custom module, which we will provide as add-ons to make JRIS80 more functional.
- Adopts a LED light strip with a Gold PVD stainless steel strip to improve the display of RGB to be more unique and beautiful on the front.
The simple and smooth design showed the original intention of JRIS80: Simple and Clean.
The JRIS80 still adopts the 2 weights but with a different design. We connected the previous large and small weights to form a closed rectangle with an inverted triangle weight inside. We use rectangles to express the concept of completeness and inverted triangles to express the sense of stability and strength. It also represents that the JRIS product series has finally completely covered 65%, 75%, and 80% layout.
Specifications
- Typing angle: 7.5°
- Front height: 18 mm
- Material: Full CNC 6063 Aluminum
- Dimension: 360*139*34mm
- Structure: PCB Gasket
- QMK/VIA Supported（wired）
- Support PCB stabilizers
custom module
Rectangle Weight
- Anodized Alu Weight
- PVD Mirror Stainless Steel Weight
- Titanium Alloy Weight
A colorful design through multiple composite processing and coloring processes. The surface texture is used to decorate, and the fine and silky surface post-processing can bring a better tactile experience.

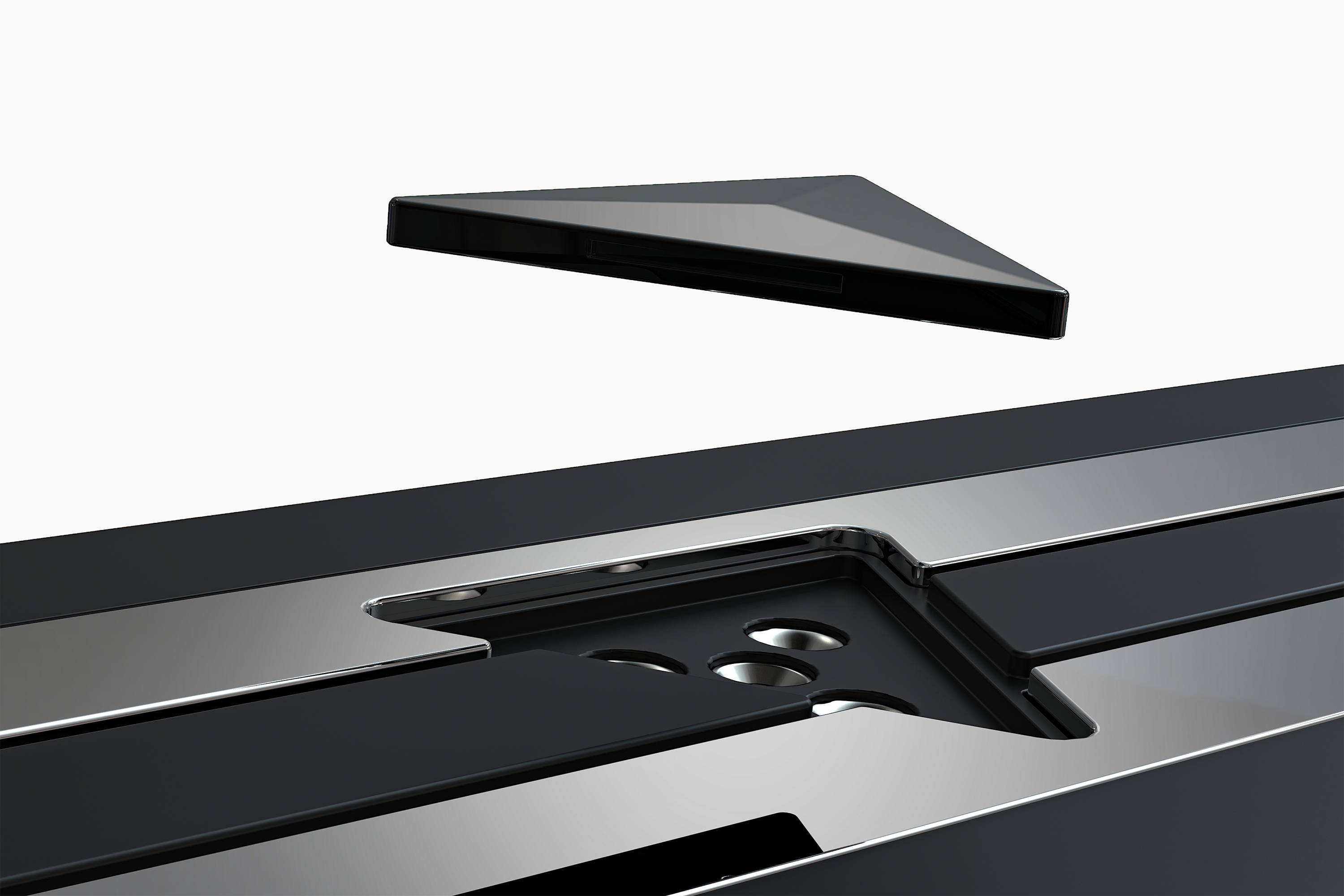

Swappable Magnetic Inverted Triangle Weight
- The inverted Triangle Weight highlights the personalized decoration on the back. We use various composite processing and coloring techniques to display the surface pattern. Different designs are options
- The three-dimensional carving of PVD Mirror Brass Weight will bring another different experience.
- The magnet installs way, allowing you to quickly swappable your inverted triangle weight.
Rotary Knob & LED Light Strip
Structure
Brass Internal Weight
Triple Gasket Adjustment
- Middle
- Sofest
- Hardest
Quick Disassembly
WK WKL
Options for JRIS80
Case Options

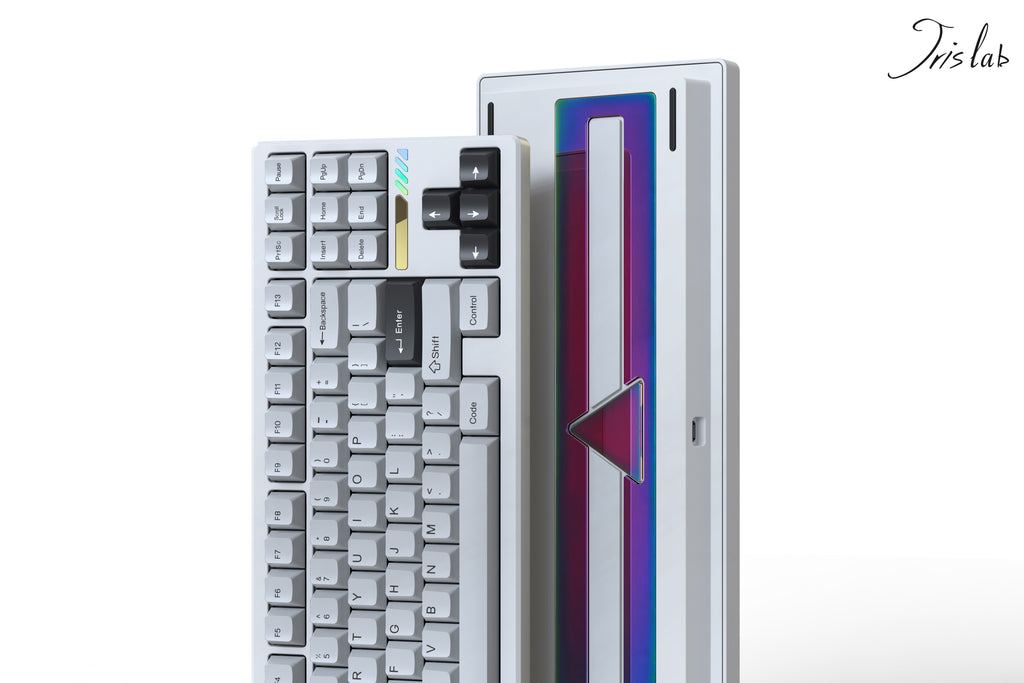

- 4 E-coat case：E-White/ Milky White/ Pink/ Lilac
- 7 Anodized Case: Black/ Silver/ Wine Red/ Navy Blue/ Dark Green/ Titanium Grey/ Orange
- 6 color combose case: E-White&Black/ Orange&Black/ WineRed&Black/Navy Blue &Black/ Dark Green&Black/Titanium Grey&Black
WEIGHT OPTIONS
- 3 Alu Weight: Gold/ Silver/ Black
- 5 PVD Weight: Gold/ Silver/ Black/ Blue/ Chroma
- 2 Titanium Alloy Weight: Auspicious Cloud/ Wave
PCB Options
Multi layout
- Wired Flex Cut Multi Layout Hotswap PCB( 1.2mm, No Per-key RGB, support QMK and VIA )
- Wired Non-Flex Cut Multi Layout Hotswap PCB(1.6mm, No Per-key RGB, support QMK and VIA )

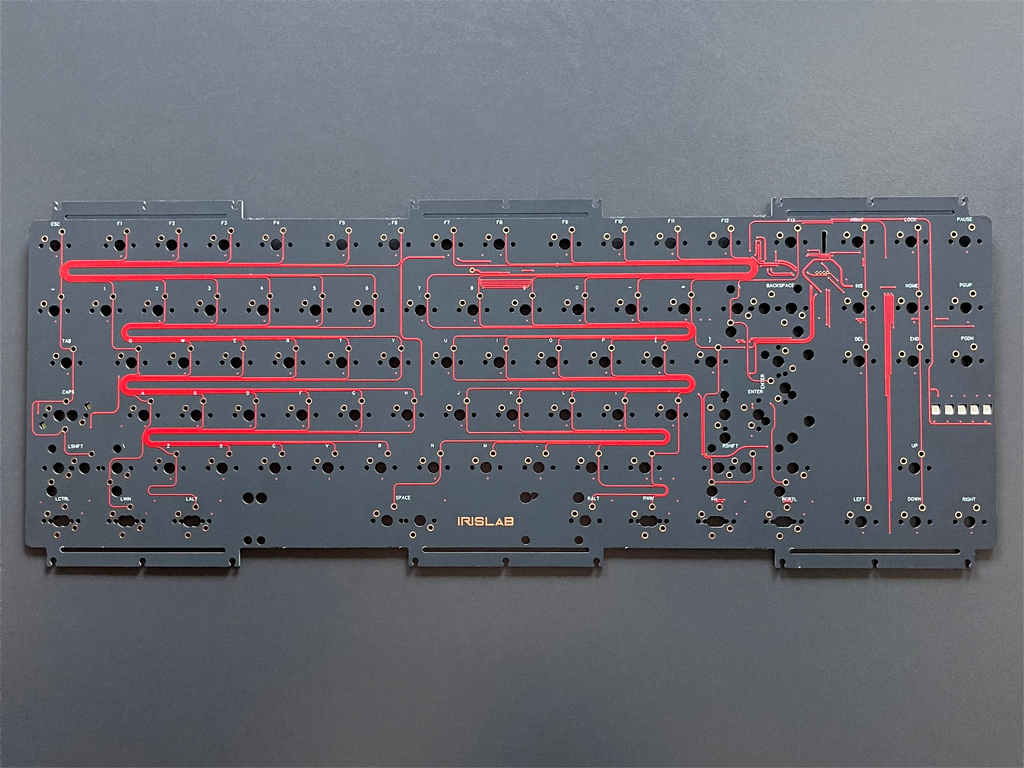

- Wired Non-Flex Cut Multi Layout Solder PCB(1.6mm, No Per-key RGB, support QMK and VIA )
ANSI layout
- Wired Per-Key RGB ANSI Hotswap PCB (1.6mm, Non-Flex Cut, support QMK and VIA )
- Tri-mode ANSI Hotswap PCB (1.2mm, Non-Flex Cut, No Per-key RGB, support IRISLab Software）
Plate Options
- Flex Cut Plates: ALU/ FR4
- Non-flex Cut Plates: POM/ PC
- Alu and FR4 Half-plate/Brass Plate (Add-ons only)
- Plateless Build(Add-ons only)
Note: We highly recommend using a PC/ POM/FR4 plate for Tri-mode PCB, because the Brass and ALU plate will have a little affection for connectivity.
Add-ons Options
WK and WKL top case
Titanium Alloy Weight
Includes the Inverted Triangle Weight.
PVD & ALU Rectangle Weight
Does not include the Inverted Triangle Weight.
PVD Stainless Steel strip
Default: PVD Gold
Brass PVD Rotary Knob
The Rotary Knob has a separate daughterboard. And please note that the wired and wireless versions of the knob are not compatible.
Inverted Triangle Weight
Pyramid material: Brass
Cell/Arrow/Windmill/Node/Blank material: Stainless steel
In keyboard kit, both PVD and Alu weight are come with the default inverted triangle Weight, and the color matches the weight's color. The titanium weight comes with the titanium inverted triangle weight ( same design)
In add-ons, the extra Alu and PVD weights do not have that default inverted triangle weight. The extra titanium weight comes with the titanium inverted triangle weight( same design).
What's in package?
- 1 x Full CNC Aluminum Case
- 1 x Brass internal Weight
- 1x Rectangle and default Inverted Triangle Weight
- 1x Gold PVD stainless steel strip
- 1 x PCB
- 1 x Plate or Plateless build
- 1 x Poron Case Foam
- 1 x Poron Plate Foam
- 1 x IXPE Foam
- 1 x Pack Gasket Silicone column
- 1 xType-C Daughterboard with JST Cable
- 1 Set of Footpad
Gift(will not send make-up or replacements)
- 1 x Customized Carrying Case
- 1 x Customized Type-C Cable
- 1 x Silicone pad of battery compartment
- 2 x 2200mha Battery（Only for the Tri-mode version）
- 1 x Customized PVD Artisan keycaps
- 1 x Aluminium Alloy Screwdriver with 2 replaceable bits
- 1 x 2 in 1 Switch puller and Keycap puller
JRIS80 REVIEW LINKS
Continuously Updating
JRIS80 Group-buy
Jris80 Group-Buy will live at 10 AM (GMT+8) on November 28th
JRIS80 PRICING
The price above does not include any tax or shipping fee.
- Vendor List
US
KeebsForAll
US
Cannonkeys
Canada
Ashkeebs
UK
Prototypist
Germany
KEYGEM
Italy
Coffeekeys
AU
SwitchKeys
South Korea
Geonworks
Mecha.Store
Mecha.Store
Japan
Basekeys
Vietnam
MOKB STORE
Philippines
Zion Studios
Malaysia
Rebult Keyboards
Indonesia
KeebsMark
Thailand
NTCH Keys
South America
LATAMKEYS
Taiwan
International
Mykeyclub
If you are interested in JRIS80, please fill in the IC Form. We would like to hear your opinion.
Welcome to join our Mykeyclub Discord to share your ideas and discussion on our channel.
