GB Time:February 25th,2023 to March 12th, 2023
Estimated Delivery: Start packing and sending to vendors and Mykeyclub direct customers in June 2023
A more creative, functional, and durable one - the JRIS75. We use a 75% layout to add a quick disassembly, triple adjustment of plate hardness, and modular components (to support the Switch, Badge, Rotary knob, and LED light sign at will replacement).
Simple and elegant design
Replaceable switch, rotary knob, Badge, and LED light sign assembly.
Full CNC aluminum case, internal brass weight, enhancing the overall stability and sound performance
4400mAh bigger battery compartment, more robust wireless mode range
New gasket mounting system
3 installation ways for different hardness needs bring you three different typing experiences.
Middle
Softest
Hardest
Quick Disassembly
To enhance your assembly experience, JRISLAB learns the quick-disassembly structure for the JRIS75. You can adjust the amount of compression on the snap screw to achieve different quick-release strength adjustments.
In addition, we moved the battery wiring port from the PCB to the daughter board, and only one connection wire is retained between the PCB and the bottom shell. That makes the internal wires neater and simplifies the steps of disassembly and installation.
Replaceable switch, rotary knob, Badge, and LED light sign assembly
Blank rotary knob and Badge for DIY
Typing angle: 7°
Front height: 21 mm
Material: Full CNC 6063 aluminum
Dimension: 325*142*39mm
Structure: PCB Gasket
Both PCB and plate adopt flex cut design
QMK/VIA Supported(wired)
Support PCB stabilizers
What can you customize for JRIS75?

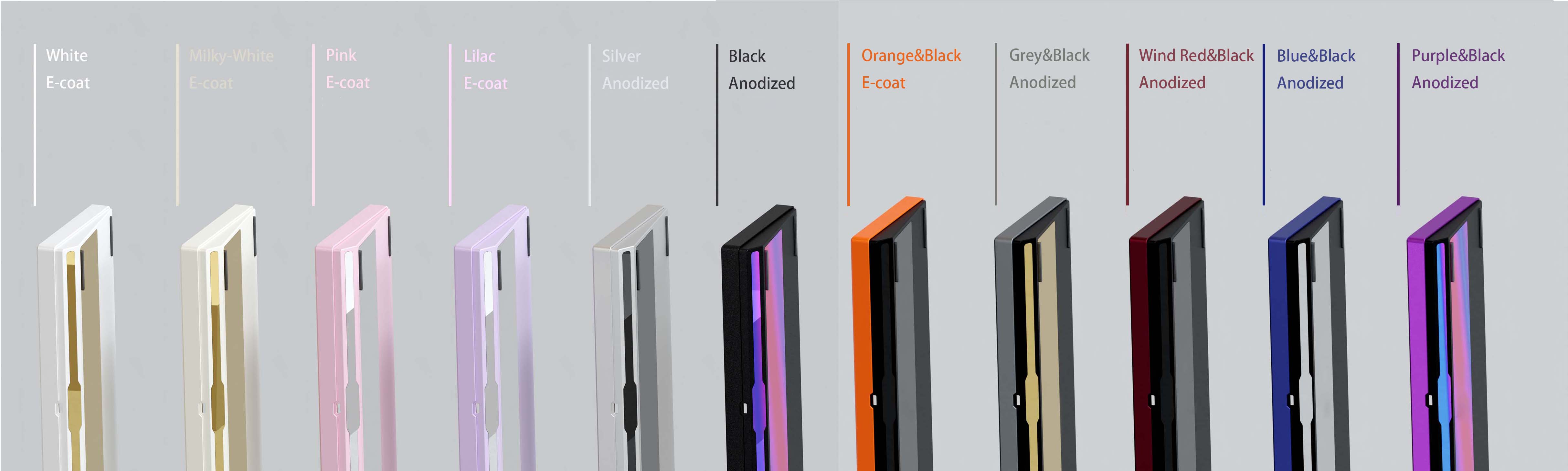

White/MilkyWhite/Pink/Lilac/Silver/Black/
Orange&Black/Grey&Black/WineRed&Black/Blue&Black/Purple&Black
Anodized Alu Weight: Black/Silver/Gold
PVD Mirror Stainless steel Weight: Black/Silver/Gold/Chroma
Flex Cut PCBs:Multi layout Black core Hotswap&Solder PCB,supports QMK/VIA
Wired QMK/VIA soldered PCB compatible with PCB stabs, split backspace, split left shift key, Step Capslocks, 7U spacebar
Flex Cut PCBs:ANSI layout 5.2 Bluetooth Hotswap PCB,supports LDN Software
Wired/Wireless BT hotswap PCB compatible with PCB stabs, Step Capslocks
Non-flex Cut PCB:ANSI layout Black core Hotswap PCB with RGB Per Key,supports QMK/VIA
Wired QMK/VIA hotswap PCB compatible with PCB stabs, Stepped caps lock, split backspace
Per Key Flex Cut PCB( Add-ons only):ANSI layout Black core Hotswap PCB with Per Key Flex Cut, supports QMK/VIAsupports QMK/VIA Wired QMK/VIA hotswap PCB compatible with PCB stabs, Stepped caps lock
BT PCB is cooperating with Li Dana. LDN’s PCB is famous in China because his PCBs are stable and qualified and use friendly. It has its drive and software, which can edit the key mapping and layers. Please check the software driver interface here.
1. 8 devices can pair with at the same time, and it is easy to switch devices you want.
2. The power switch is on the PCB, easy to turn BT function on/ off.
3. The fastest response time is only 1.25ms.
4. The polling rate for the BT PCB is 1ms/1000hz.
5. The battery is 4400mAh, bigger battery compartment, more robust wireless mode range.
Note: We highly recommend using a PC/ POM/FR4 plate for BT PCB because the Brass and ALU plate will have a little affection for connectivity.
Flex Cut Plates: FR4/ALU/Brass(Brass Plate Add-ons Only)
The regular FR4 plate is upgrading to the black core martial at the same price.
Non-flex Cut Plates: PC/POM
Plateless Build Options:We highly suggest building plateless with solder PCB, 5mm extra plate foamand bottom case foam.
The 5mm extra plate foam will bring a more soft typingfeel, and the typing sound will be cleaner. But without the 5mm plate foam, itwill also work fine, and the typing feel and sound are very different.
