MKC75 Pre-order
Feature
Compact 75% layout.
Supports Alu Internal Weight.
Multiple configurations available.
Supports Caps Lock Indicator Light.
Supports tri-mode PCB(Wired, Bluetooth and 2.4ghz).
2 x 2200mha large battery capacity.
100% processed using CNC machining with 6063 aluminum case.
Supports Plate, Half Plate and Plateless Build.
Three-in-one structural design( Top Mount, Plate Gasket Mount and PCB Gasket Mount ).
Supports Rotary Knobs and LED Light Signs, which are also compatible with JRIS75 Rotary Knob/ Badge /LED Light Sign.
Three-in-one Structure
We have adopted a three-in-one structural design for the internal structure, which can support regular positioning plate gaskets, PCB gaskets, and the long-disappeared TOP Mount structure. Thanks to the consistent frame of the compact 75% layout, we can make the three structures perfectly compatible.
- TOP Mount

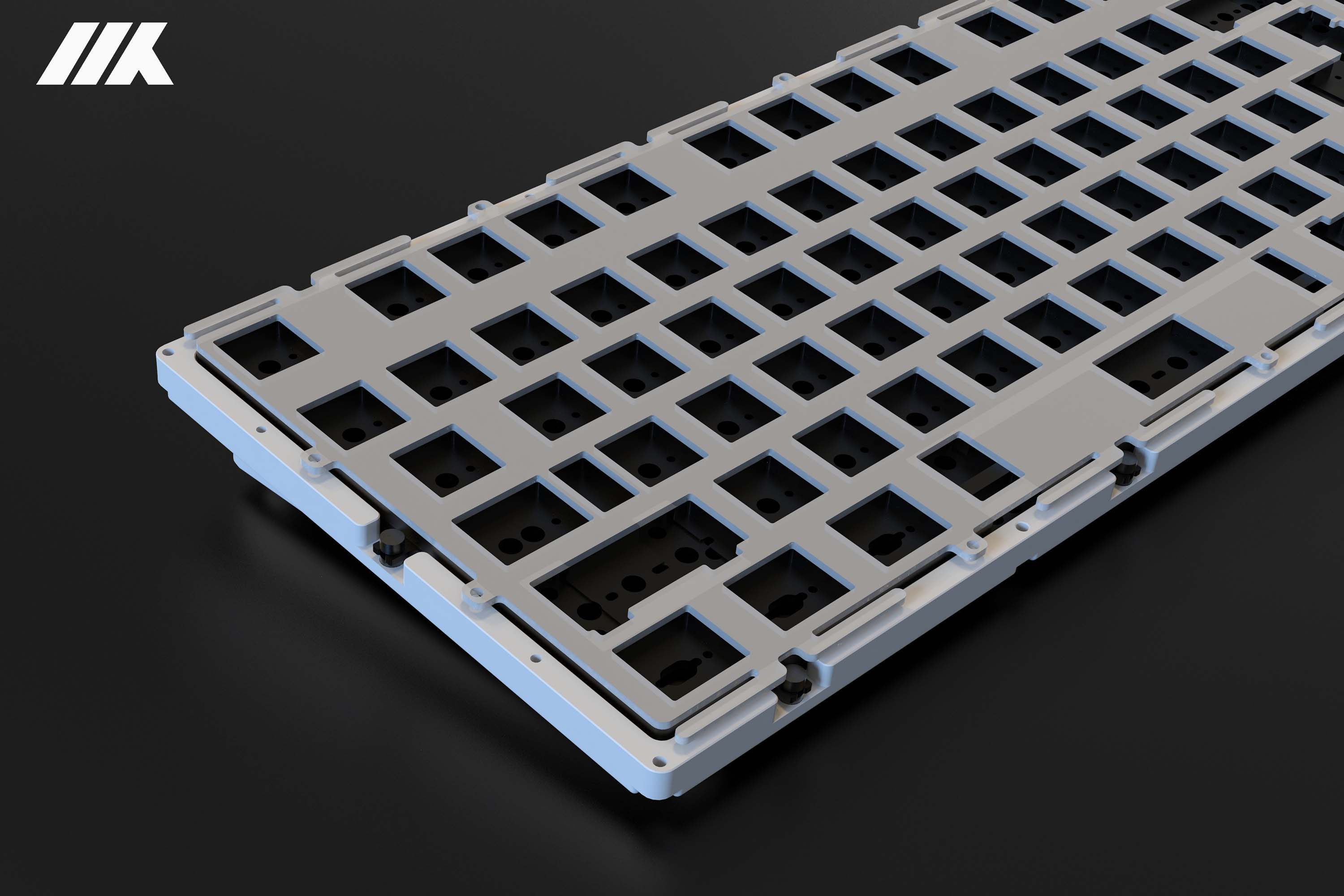

- PCB Gasket Mount

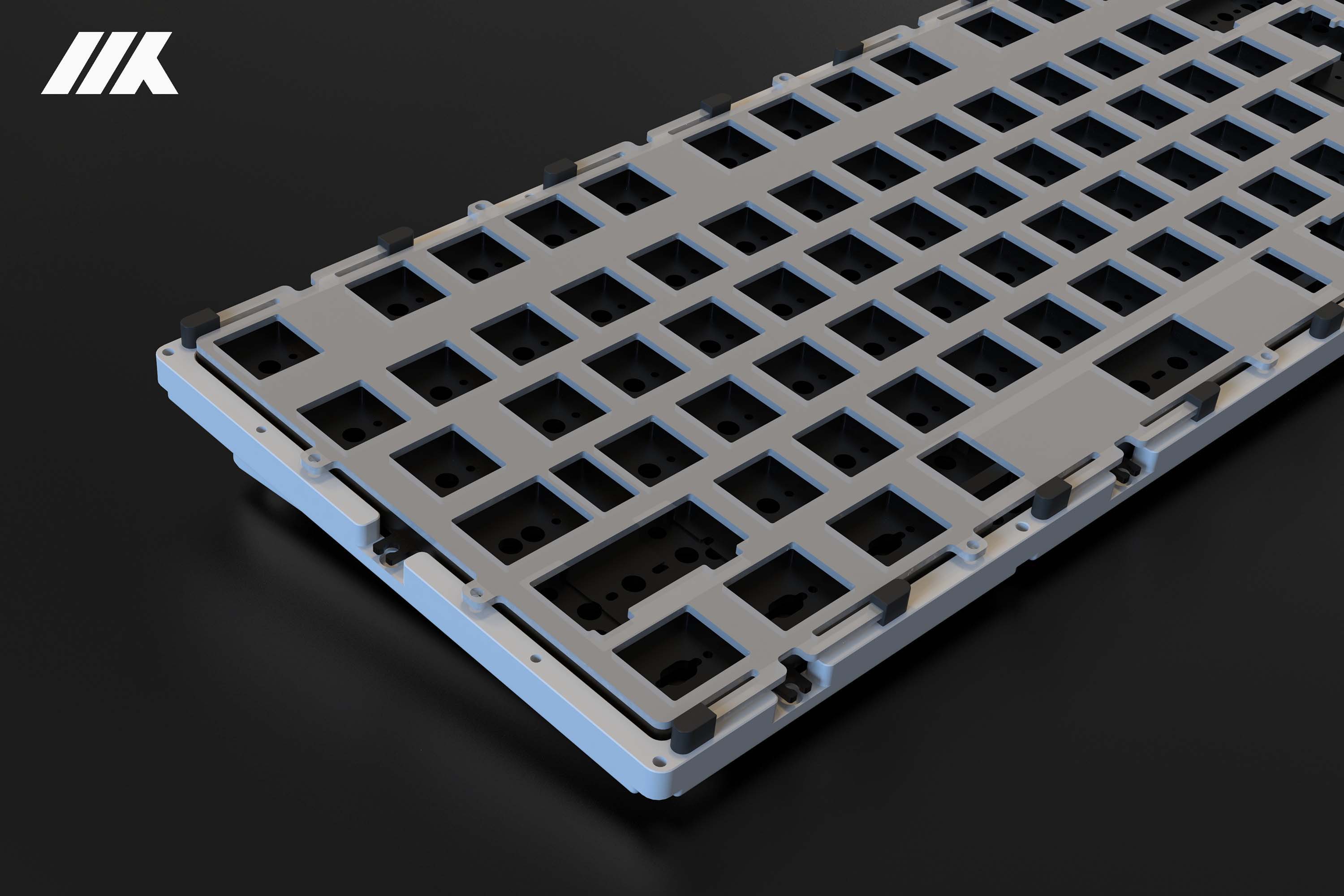

- Plate Gasket Mount

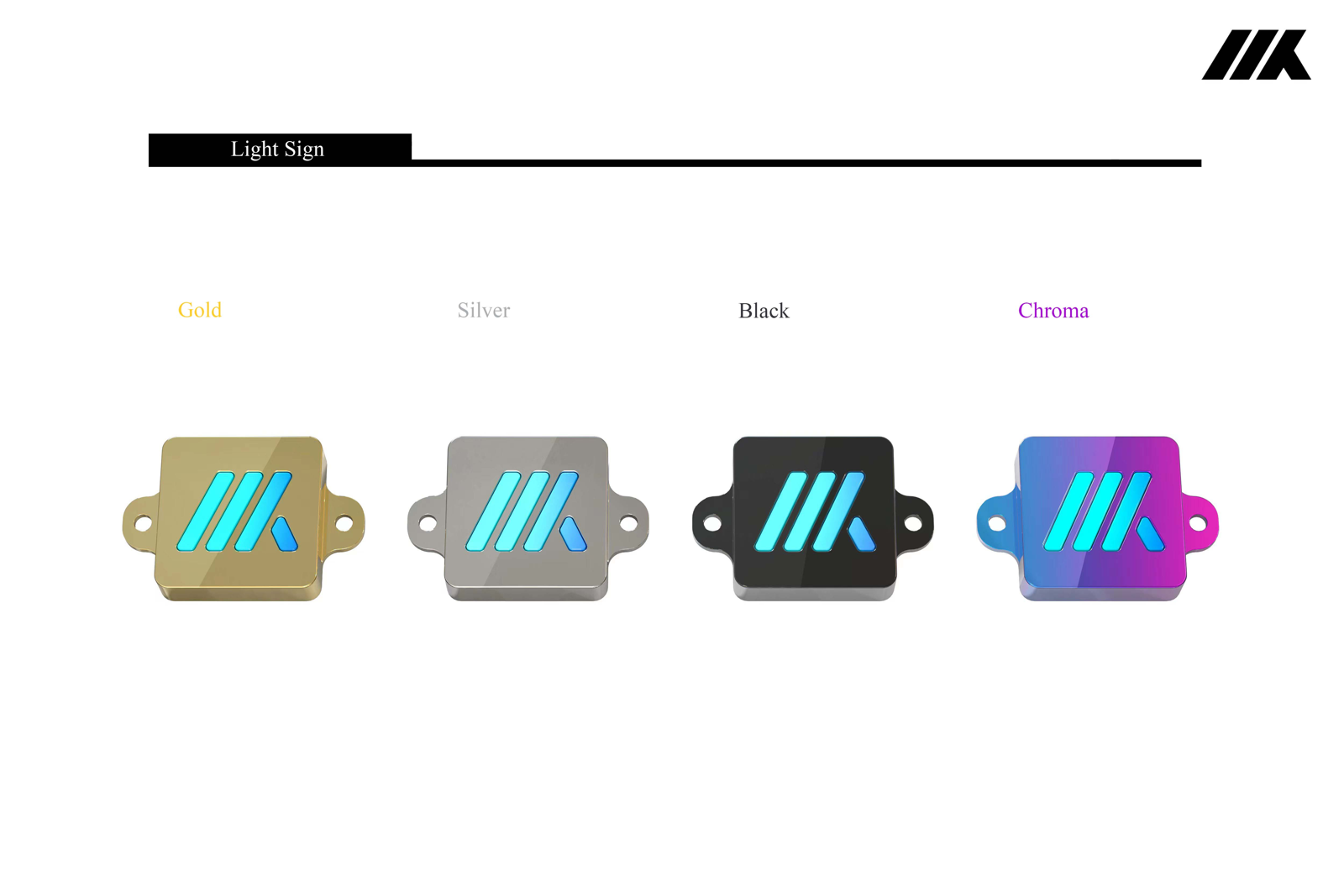

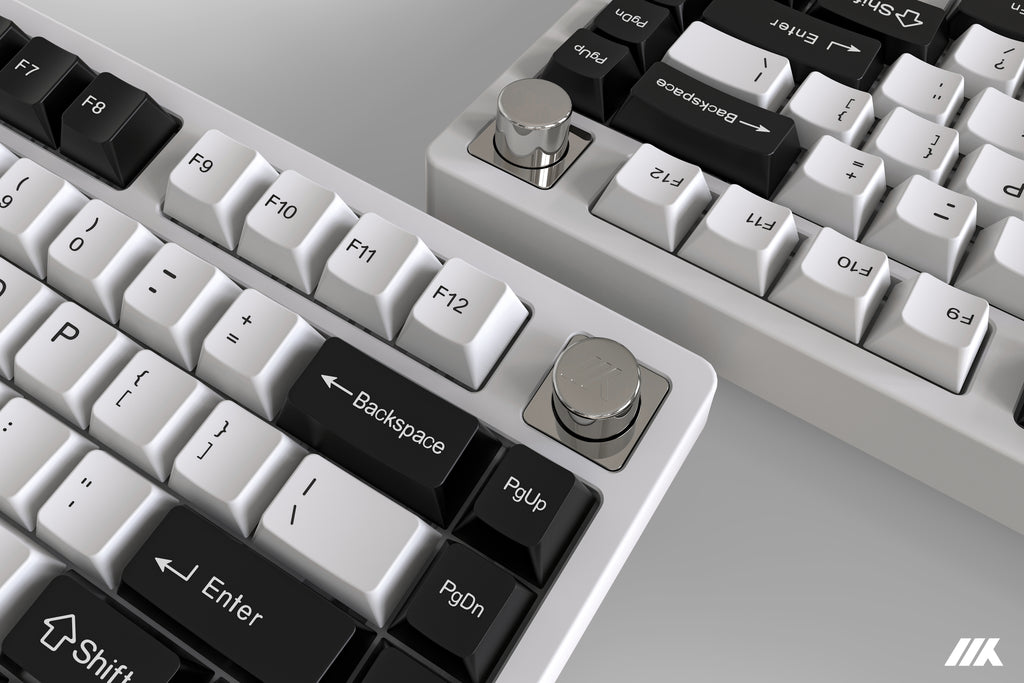

Support Rotary Knobs/ Light Signs
Specifications
- Typing angle: 7°
- Front height: 18.5 mm
- Material: Full CNC 6063 aluminum
- Dimension: 320*134.4*33mm
- Three-in-one Structure: TOP Mount / Plate Gasket Mount / PCB Gasket Mount
- QMK/VIA Supported（wired）
- Support PCB stabilizers
- Unbuilt Weight
- With PVD WEIGHT: 1.693kg
- With Alu WEIGHT: 1.425kg
- Built Weight
- With PVD WEIGHT: 1.86kg
- With Alu WEIGHT: 1.592kg
What you can customize for mkc75?
Case Colors Options
- 4 E-coat case：E-white, Milky White, Pink, Lilac
- 6 Anodized Case: Orange, Black, Brown, Grey, Silver, Green
- 7 color combose case：E-White&Black, Orange&Black, Grey&Black, Silver&Black, Wine Red&Black, Deep Blue&Black, Green&Black
Weight Colors Options
Blank Weight/ Cursive Text Weight (Add-on only)
- 4 Alu Weight: Gold/Silver/Rose Gold/Black
- 6 PVD SS Weight: Gold/Silver/Black/Blue/Rose Gold/Chroma
PCB Options
Wired Flex Cut Hotswap PCB( 1.2mm, Multi Layout , 7u split spacebar, No Per-key RGB, support QMK and VIA )
Solder PCB / Wired Non-Flex Cut Hotswap PCB(1.6mm, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
Wired Per-Key RGB Hotswap PCB ( Add-on only, 1.6mm, Non-Flex Cut, ANSI Layout, support QMK and VIA )
Tri-mode ANSI+ISO Hotswap PCB (1.2mm, Non-Flex Cut, No Per-key RGB, support Mykeyclub Software）
Plate Options
- Flex Cut Plates: FR4, ALU, Brass (Add-on only)
- Non-flex Cut Plates: PC, POM
- Alu and FR4 Half-plate (Add-on only)
- Plateless
Note: We highly recommend using a PC/ POM/FR4 plate for Tri-mode PCB, because the Brass and ALU plate will have a little affection for connectivity.
What's Included in mkc75?
- Full CNC Aluminum Top case *1
- Full CNC Aluminum Bottom case*1
- Weight (Anodized Alu Weight or Stainless steel PVD Weight) *1
- Internal Alu Weight (Only for the Tri-mode Version Case) *1
- Plateless or Plate *1
- PCB *1
- IXPE Foam *1
- Poron Case Foam *1
- Poron Plate Foam *1

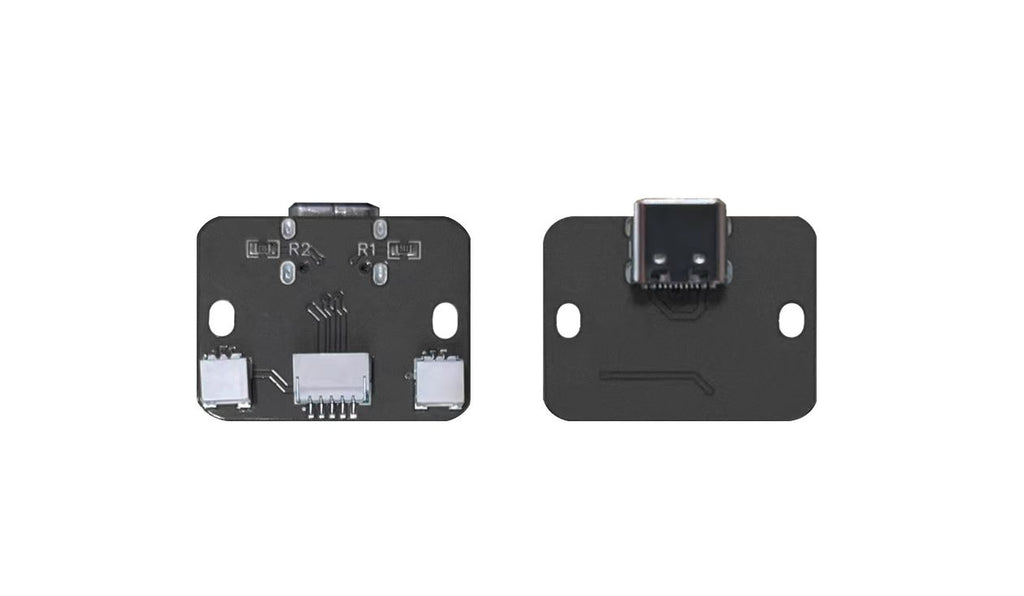

- Type-C Daughterboard with JST Cable *1
- PCB GAS Silicone Column *12
- Plate GAS Silicone Sock *18
- Top mount screw and spacer *12
- PCB stabilizers o-ring *12
- Footpad *6
- Poron case strip *6
- 1.6mm hex key *1
Gift
(will not send make-up or replacements)
- 1 Pack of Extra Screw
- M2x3mm cylindrical head screw *2
- M2x8mm cylindrical head screw *2
- M3x12mm countersunk screw *2
- M3x6mm countersunk screw *2
- 2200mha battery (Only for the Tri-mode Version Case) *2
- Silicone pad of battery compartment (Only for the Tri-mode Version Case) *2
Accessories Photo
MKC75 Pricing
MKC75 PRE-ORDER
The MKC75 Pre-order has not started yet, purchase pages will live at the time of Pre-order launch.
Please take a few moments to fill out the MKC75 IC form and share your feedback on this project. Your feedback matters to us, and we would like to hear from you.
Welcome to join our Mykeyclub Discord to share your ideas and discussion on our channel.
